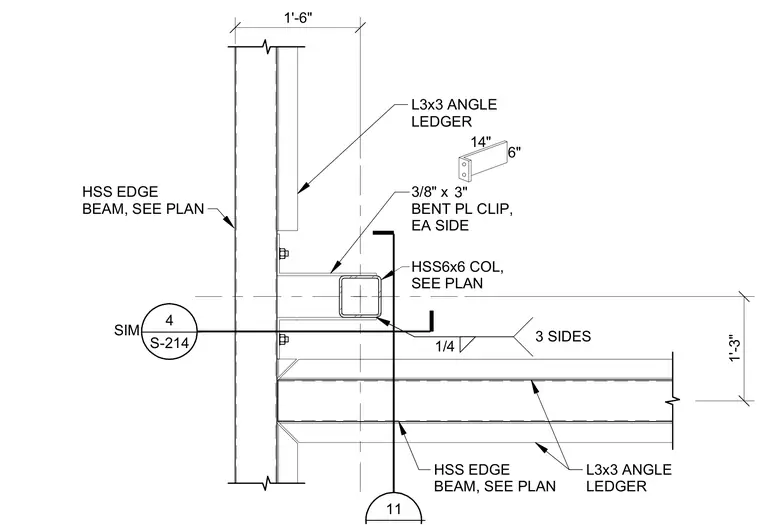

An HSS 6x6 column connects to perpendicular HSS edge beams sized per plan via three-eighths-inch by three-inch bent plate clips on each side, welded with a quarter-inch fillet weld on three sides. An L3x3 angle ledger spans along the framing, positioned at an offset dimensioned on the plan. Additional framing components include continuous HSS edge beams and angle ledgers configured to frame the entry corner geometry.
1/4 3 SIDES HSS6x6 COL, SEE PLAN 3/8" x BENT PL CLIP, EA SIDE 14" 6" 3" L3x3 ANGLE LEDGER HSS EDGE BEAM, SEE PLAN 1'-3" 1'-6" HSS EDGE BEAM, SEE PLAN L3x3 ANGLE LEDGER 4 S-214 _______________ SIM 11 _______________
