A hollow structural section column bears on a base plate atop a concrete foundation with a grout pad, anchored by cast-in-place anchor bolts. A concrete blockout surrounds the column base with a minimum six-inch clearance on all sides below the top of the slab. Number four dowels are spaced at twelve inches on center typically around all four sides of the column and extend down into the footing with a one-foot minimum lap. Continuous slab reinforcement or two number five minimum trim bars are placed around the blockout edge within the surrounding concrete slab.

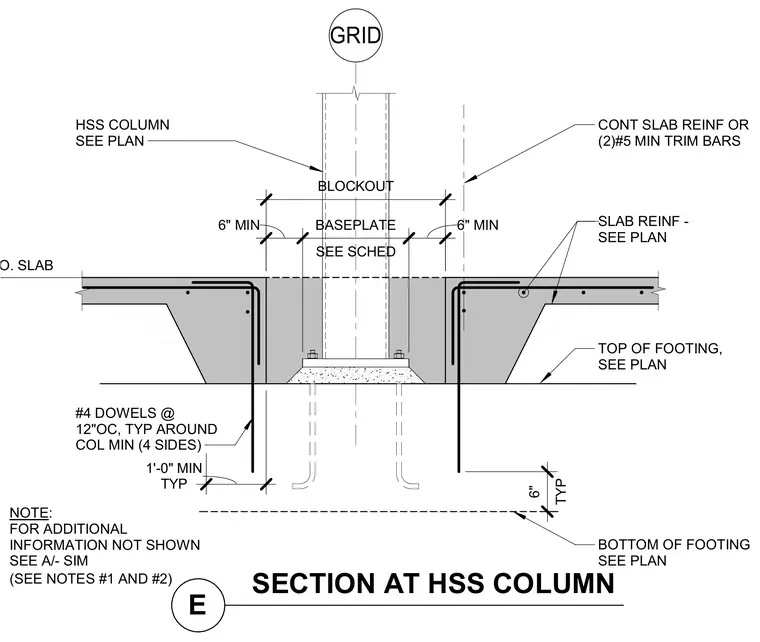

SECTION AT HSS COLUMN E (SEE NOTES #1 AND #2) NOTE: FOR ADDITIONAL INFORMATION NOT SHOWN SEE A/- SIM #4 DOWELS @ 12"OC, TYP AROUND COL MIN (4 SIDES) BOTTOM OF FOOTING SEE PLAN CONT SLAB REINF OR (2)#5 MIN TRIM BARS SLAB REINF - SEE PLAN TOP OF FOOTING, SEE PLAN HSS COLUMN SEE PLAN BLOCKOUT TYP 6" 6" MIN SEE SCHED BASEPLATE 6" MIN GRID T.O. SLAB TYP 1'-0" MIN
