A wide-flange column connects to a grade 50 base plate anchored to a concrete footing sized per plan. A two-inch layer of nonshrink grout fills the space beneath the base plate. Embedded anchor rods extend down to a grade 50 anchor plate located near the bottom of the footing. Number four ties spaced at four inches on center enclose the anchorage zone within the two-foot-thick concrete footing.

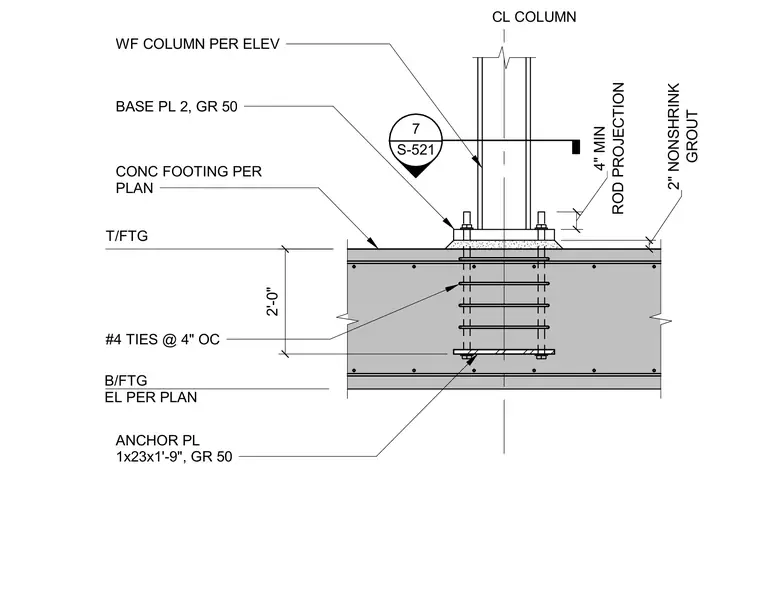

T/FTG WF COLUMN PER ELEV #4 TIES @ 4" OC CL COLUMN GROUT 2" NONSHRINK 2'-0" CONC FOOTING PER PLAN ANCHOR PL 1x23x1'-9", GR 50 B/FTG EL PER PLAN ROD PROJECTION 4" MIN 7 S-521 ____ BASE PL 2, GR 50
