Steel joists bear on a steel girder with a 3/8-inch by 3-inch wide by 6-long splice plate connecting the top chords. Two 1/2-inch diameter A325 erection bolts are provided at all joists spanning 40 feet or more. A girder bottom chord brace is supplied by the joist or girder supplier typically located at the joist mid-span of the girder. Steel deck spans across the top of the joists.

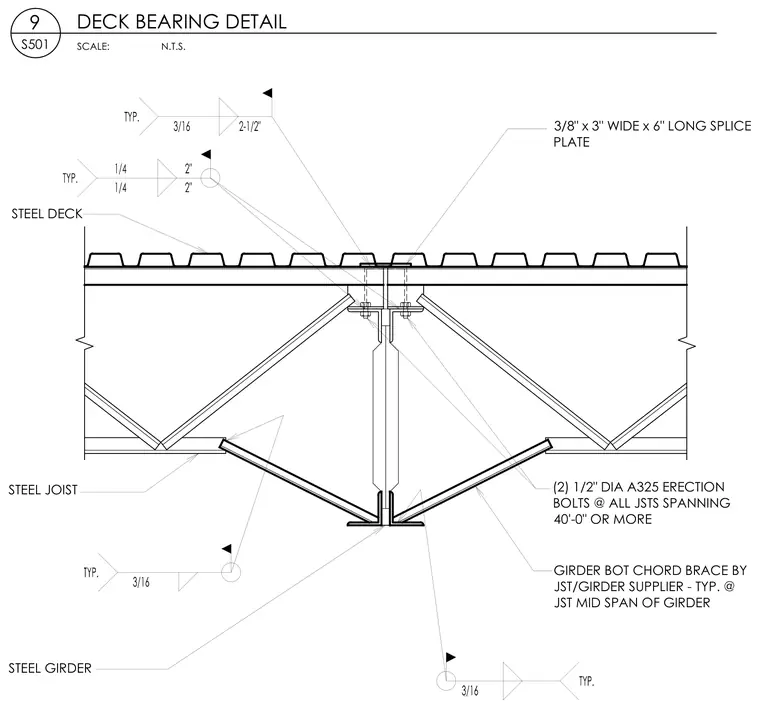

SCALE: 9 S501 DECK BEARING DETAIL N.T.S. STEEL GIRDER (2) 1/2" DIA A325 ERECTION BOLTS @ ALL JSTS SPANNING 40'-0" OR MORE GIRDER BOT CHORD BRACE BY JST/GIRDER SUPPLIER - TYP. @ JST MID SPAN OF GIRDER STEEL JOIST STEEL DECK 3/8" x 3" WIDE x 6" LONG SPLICE PLATE
