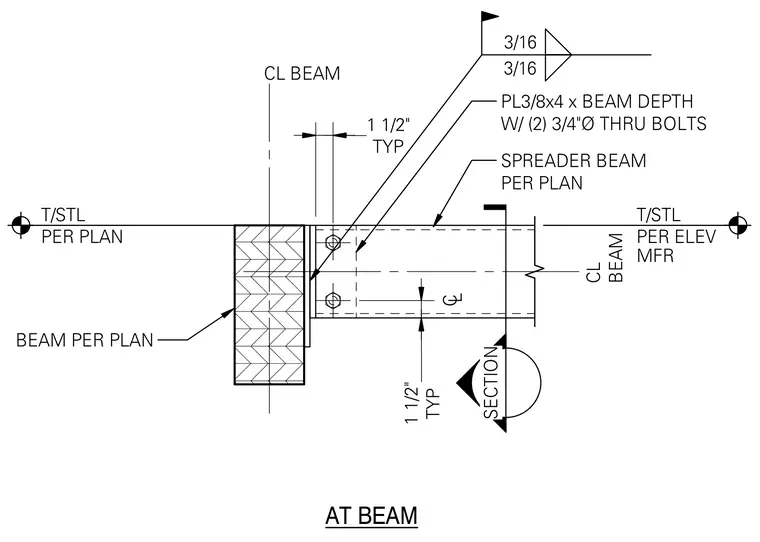

A spreader beam frames into a glulam timber beam using a three-eighths-inch by four-inch steel plate matching the beam depth, secured by two three-quarter-inch diameter through-bolts. Fillet welds of three-sixteenths-inch size connect the plate assembly. The top of steel elevation is coordinated per plan and elevation manufacturer requirements.
BEAM PER PLAN T/STL PER PLAN TYP 1 1/2" C L TYP 1 1/2" CL BEAM SECTION SPREADER BEAM PER PLAN PL3/8x4 x BEAM DEPTH W/ (2) 3/4"Ø THRU BOLTS T/STL PER ELEV MFR CL BEAM AT BEAM 3/16 3/16
