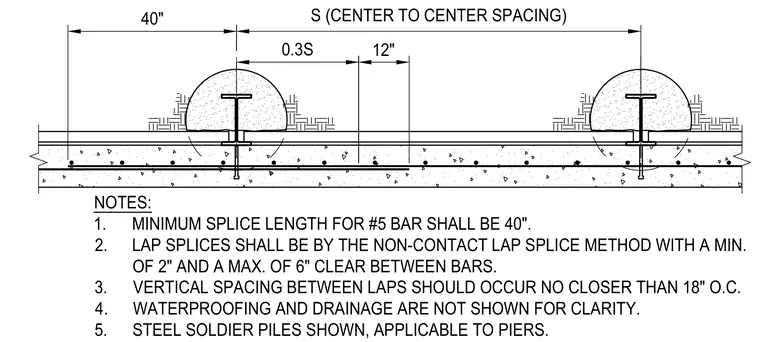

Reinforcing bars are lapped using the non-contact lap splice method with a minimum of two inches and a maximum of six inches clear between bars, maintaining a minimum splice length of forty inches for number five bars. Vertical spacing between laps occurs no closer than eighteen inches on center. Steel soldier piles are shown, applicable to piers. Waterproofing and drainage are omitted for clarity.
40" S (CENTER TO CENTER SPACING) 12" 0.3S NOTES: 1. MINIMUM SPLICE LENGTH FOR #5 BAR SHALL BE 40". 2. LAP SPLICES SHALL BE BY THE NON-CONTACT LAP SPLICE METHOD WITH A MIN. OF 2" AND A MAX. OF 6" CLEAR BETWEEN BARS. 3. VERTICAL SPACING BETWEEN LAPS SHOULD OCCUR NO CLOSER THAN 18" O.C. 4. WATERPROOFING AND DRAINAGE ARE NOT SHOWN FOR CLARITY. 5. STEEL SOLDIER PILES SHOWN, APPLICABLE TO PIERS.
