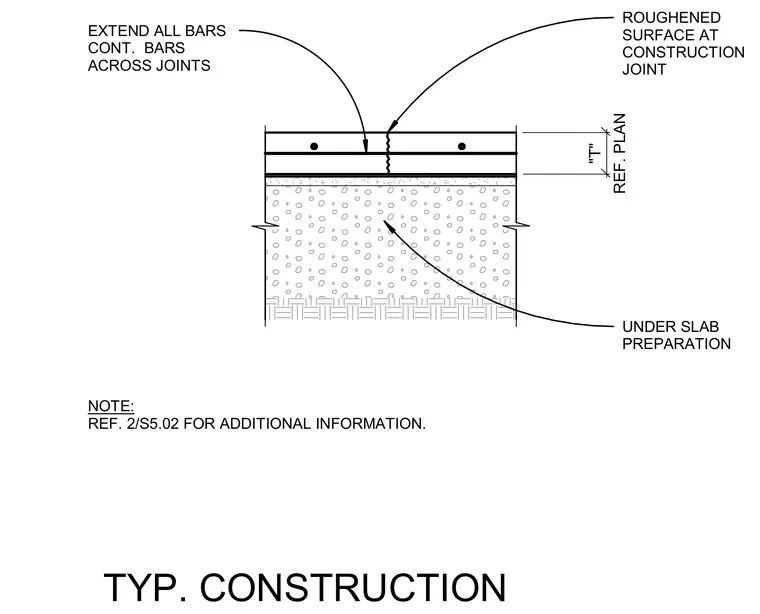

Continuous reinforcing bars extend across the construction joint to maintain structural continuity through the concrete slab. The joint interface features a roughened surface preparation for bond enhancement. The assembly sits above an under slab preparation layer with specified reference plan dimensioning.
REF. PLAN "T" UNDER SLAB PREPARATION EXTEND ALL BARS CONT. BARS ACROSS JOINTS NOTE: REF. 2/S5.02 FOR ADDITIONAL INFORMATION. ROUGHENED SURFACE AT CONSTRUCTION JOINT TYP. CONSTRUCTION
