Structural · S-W8YTS

Typical Concrete Retaining Wall Section and Schedule

Materials

Concrete

Elements

Walls Retaining Walls Expansion / Control Joints Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Expansion / Slip Connection

About this detail

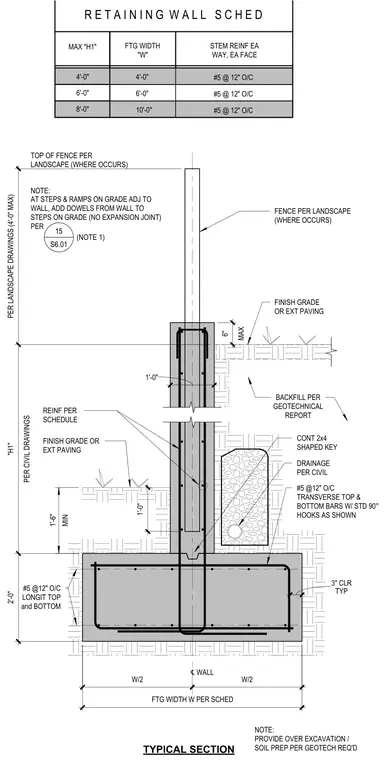

A reinforced concrete stem wall, continuous footing, and a retaining wall schedule comprise this typical concrete retaining wall section. The foundation footing features longitudinal bottom reinforcement with three-inch clear cover and a continuous two-by-four shaped key at the stem interface. The wall stem incorporates vertical and horizontal reinforcement per the retaining wall schedule, along with dowels connecting to adjacent steps or ramps on grade without an expansion joint. Drainage provisions, backfill requirements, and over-excavation specifications are included per civil and geotechnical reports.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
