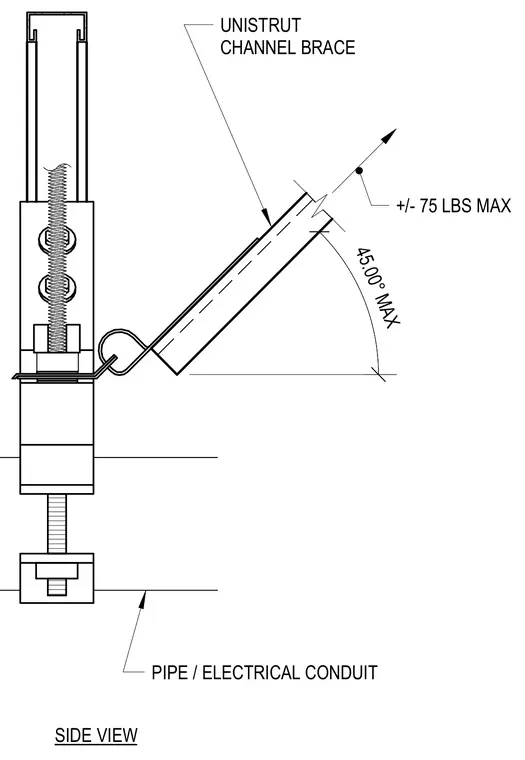

A Unistrut channel brace connects to a suspended pipe or electrical conduit to provide lateral support. The diagonal brace is oriented at a forty-five degree maximum angle and rated for plus or minus seventy-five pounds maximum load. Hardware includes threaded rods, nuts, and attachment clamps securing the assembly.
SIDE VIEW UNISTRUT CHANNEL BRACE PIPE / ELECTRICAL CONDUIT 45.00° MAX +/- 75 LBS MAX
