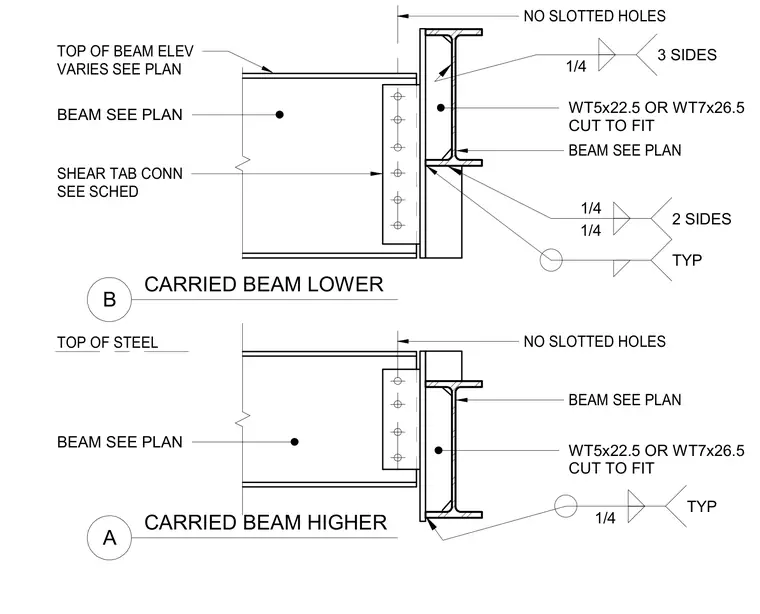

An offset steel beam connection uses a WT5x22.5 or WT7x26.5 section cut to fit against the supporting beam web, welded with a quarter-inch fillet weld typically on two or three sides as indicated. The carried steel beam connects via a shear tab connection sized per schedule with unslotted bolt holes. The top of the beam elevation varies per plan for both carried beam higher and carried beam lower conditions.
TOP OF BEAM ELEV VARIES SEE PLAN NO SLOTTED HOLES SHEAR TAB CONN SEE SCHED TOP OF STEEL WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 1/4 3 SIDES TYP 1/4 1/4 2 SIDES 1/4 TYP CARRIED BEAM HIGHER A CARRIED BEAM LOWER B NO SLOTTED HOLES
