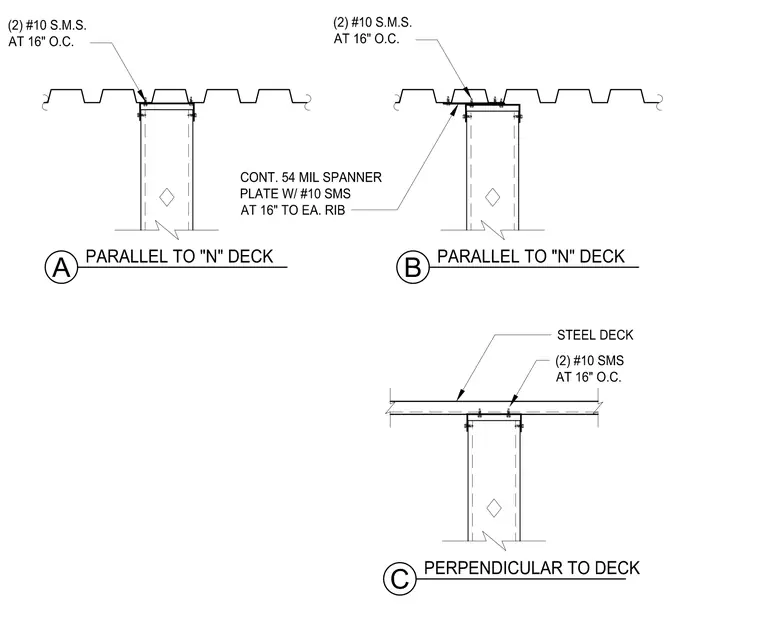

Cold-formed steel wall studs attach to metal deck profiles as follows: Detail A features wall framing aligned parallel to deck ribs, secured with two number 10 sheet metal screws at 16 inches on center. Detail B utilizes a continuous 54 mil spanner plate for parallel orientation, fastened to each deck rib with number 10 sheet metal screws at 16 inches on center. Detail C positions wall framing perpendicular to the steel deck, with the top track connected to the deck using two number 10 sheet metal screws at 16 inches on center.
