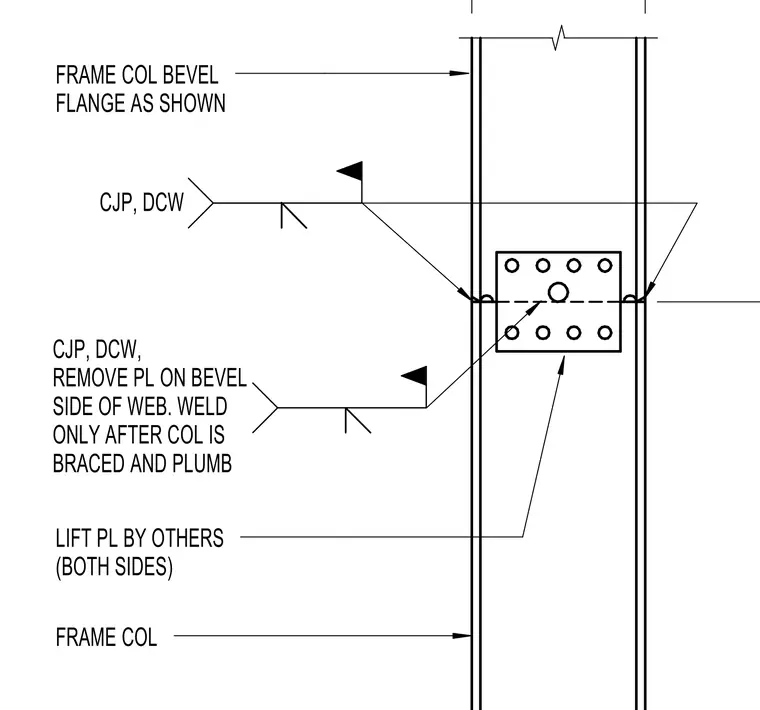

The framing column is fabricated with a beveled flange as shown and features a lift plate provided by others on both sides. A complete joint penetration weld with a double-bevel groove weld is specified, requiring the plate on the bevel side of the web to be removed. Welding must only proceed after the column is fully braced and plumb.
FRAME COL LIFT PL BY OTHERS (BOTH SIDES) FRAME COL BEVEL FLANGE AS SHOWN CJP, DCW, REMOVE PL ON BEVEL SIDE OF WEB. WELD ONLY AFTER COL IS BRACED AND PLUMB CJP, DCW
