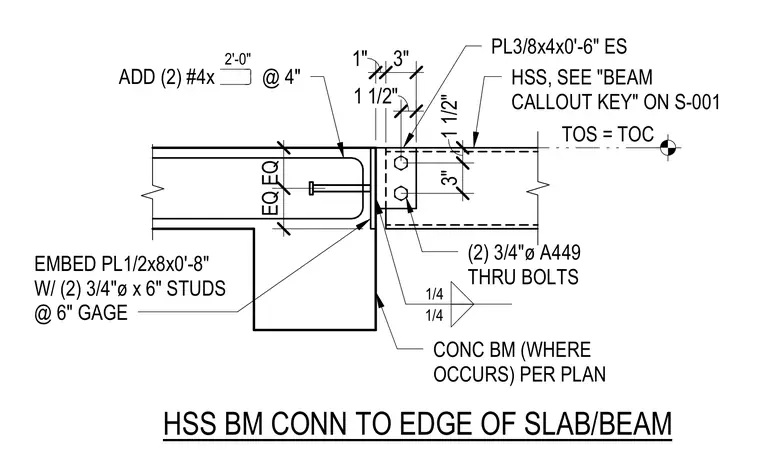

A hollow structural section beam frames into the edge of a concrete slab or concrete beam using a three-eighths-by-four-inch by zero-foot-six-inch plate welded with quarter-inch fillet welds. The connection utilizes two three-quarter-inch-diameter A449 through bolts. The concrete slab edge features an embed plate measuring half-inch by eight inches by zero-foot-eight inches with two three-quarter-inch-diameter by six-inch studs at a six-inch gauge. Two additional number four reinforcing bars are placed at four-inch spacing spanning two feet into the slab edge.
1" 3" 3" 1 1/2" 1/4 1/4 PL3/8x4x0'-6" ES HSS, SEE "BEAM CALLOUT KEY" ON S-001 (2) 3/4"ø A449 THRU BOLTS CONC BM (WHERE OCCURS) PER PLAN 1 1/2" EMBED PL1/2x8x0'-8" W/ (2) 3/4"ø x 6" STUDS @ 6" GAGE TOS = TOC EQ EQ ADD (2) #4x @ 4" 2'-0" HSS BM CONN TO EDGE OF SLAB/BEAM
