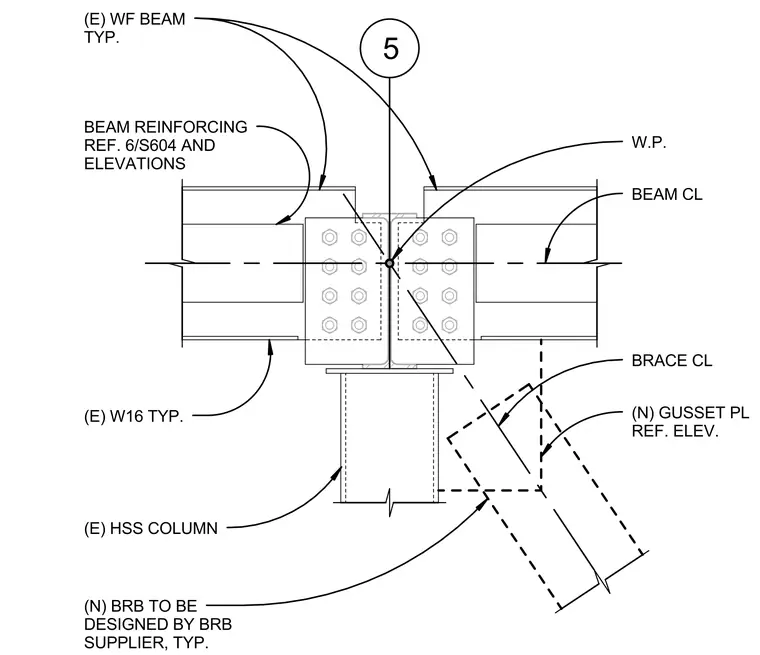

A beam-to-column connection in a braced frame assembly features an existing wide-flange beam framing into an existing hollow structural section column. A new gusset plate is positioned at the intersection of the beam centerline, column centerline, and brace centerline work point. The connection accommodates a buckling-restrained brace designed by the brace supplier, with additional beam reinforcing referenced from adjacent details. Typical wide-flange beam and column sections are connected using standard bolted gusset plate configurations.
(E) WF BEAM TYP. (E) HSS COLUMN BRACE CL BEAM CL W.P. (N) GUSSET PL REF. ELEV. (N) BRB TO BE DESIGNED BY BRB SUPPLIER, TYP. BEAM REINFORCING REF. 6/S604 AND ELEVATIONS 5 (E) W16 TYP.
