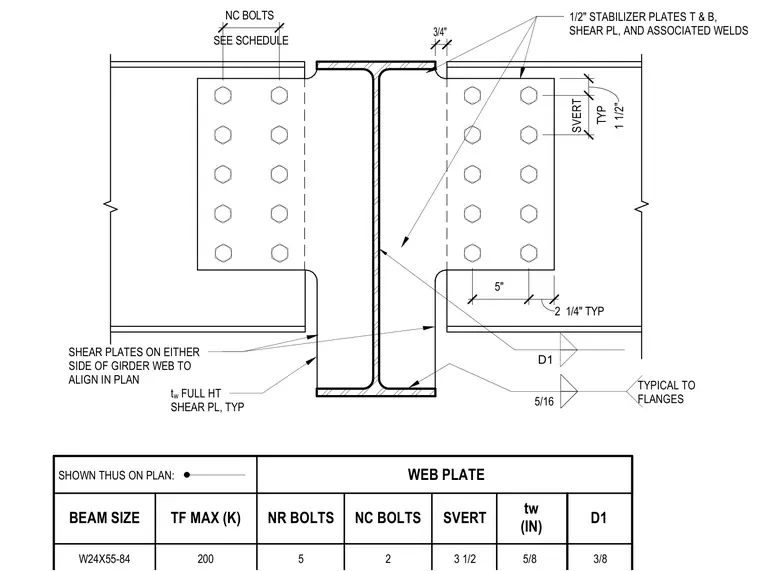

This structural steel connection joins framing beams to both sides of a central girder web using bolted shear plates and top and bottom stabilizer plates. One-half-inch-thick stabilizer plates weld to the top and bottom flanges of the girder and beams with five-sixteenth-inch fillet welds. Shear plates on either side of the girder web align in plan and feature full-height web plates of varying thicknesses sized per the accompanying schedule. Beams secure to the shear plates with non-slip or common bolts configured in vertical rows sized according to the member designation. Associated welds and plate dimensions provide load transfer across the seismic force-resisting system collector.
1/2" STABILIZER PLATES T & B, SHEAR PL, AND ASSOCIATED WELDS SHEAR PLATES ON EITHER SIDE OF GIRDER WEB TO ALIGN IN PLAN BEAM SIZE NR BOLTS tw (IN) SHOWN THUS ON PLAN: NC BOLTS TF MAX (K) SVERT TYP SVERT 1 1/2" SEE SCHEDULE NC BOLTS W24X55-84 200 5 2 3 1/2 D1 5/8 WEB PLATE t w FULL HT SHEAR PL, TYP D1 5" 2 1/4" TYP 3/8 5/16 TYPICAL TO FLANGES 3/4"
