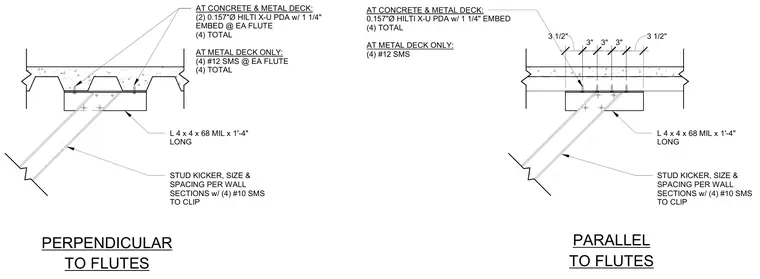

An angle clip measuring L 4x4 by 68 mil by 1'-4" long serves as the attachment bracket for a stud kicker, with size and spacing determined per wall sections. The connection fastens to the underside of a concrete-filled metal deck using either powder-actuated fasteners or self-tapping sheet metal screws. At concrete and metal deck conditions, the clip secures with two 0.157-inch diameter Hilti X-U powder-driven anchors with 1 1/4-inch embedment per flute for four total fasteners. At metal deck only conditions, the clip fastens with four #12 self-tapping screws per flute for four total fasteners. The connecting stud kicker angle fastens to the clip using four #10 self-tapping screws.
L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP AT CONCRETE & METAL DECK: (2) 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED @ EA FLUTE (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS @ EA FLUTE (4) TOTAL AT CONCRETE & METAL DECK: 0.157"Ø HILTI X-U PDA w/ 1 1/4" EMBED (4) TOTAL AT METAL DECK ONLY: (4) #12 SMS PERPENDICULAR TO FLUTES PARALLEL TO FLUTES 3 1/2" 3" 3" 3" 3 1/2" L 4 x 4 x 68 MIL x 1'-4" LONG STUD KICKER, SIZE & SPACING PER WALL SECTIONS w/ (4) #10 SMS TO CLIP
