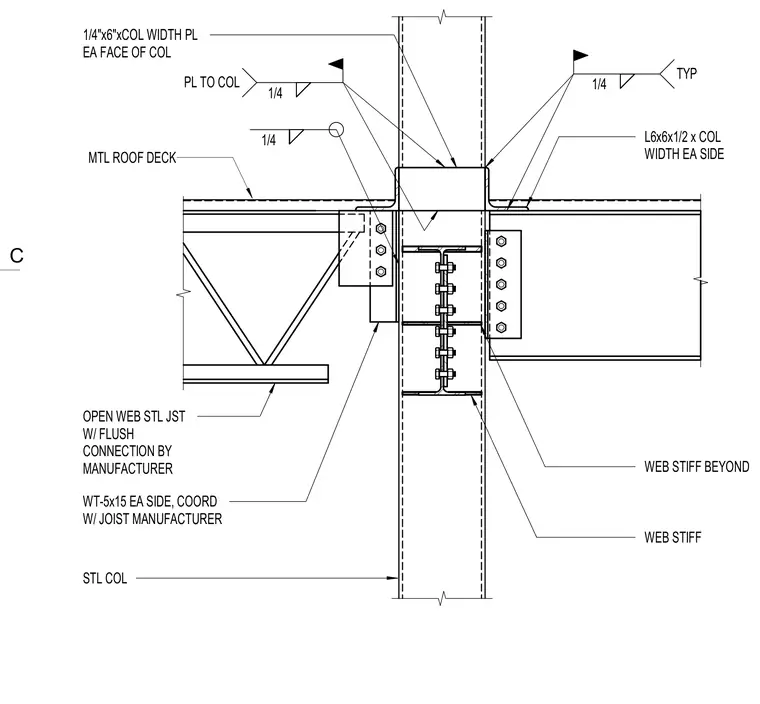

An open-web steel joist with a flush manufacturer connection frames into a WT-5x15 shape on each side of a steel column, coordinated with the joist manufacturer. A structural steel column receives a quarter-inch by six-inch plate on each face welded with quarter-inch fillet welds. Angles measuring 6x6x1/2 span the column width on each side to support the metal roof deck. Web stiffeners and web stiffeners beyond are provided at the column connection points. A bolted wide-flange beam connects to the opposite face of the column with matching web stiffeners.
WEB STIFF WEB STIFF BEYOND MTL ROOF DECK WT-5x15 EA SIDE, COORD W/ JOIST MANUFACTURER OPEN WEB STL JST W/ FLUSH CONNECTION BY MANUFACTURER 1/4 STL COL 1/4 TYP 1/4 PL TO COL L6x6x1/2 x COL WIDTH EA SIDE 1/4"x6"xCOL WIDTH PL EA FACE OF COL C
