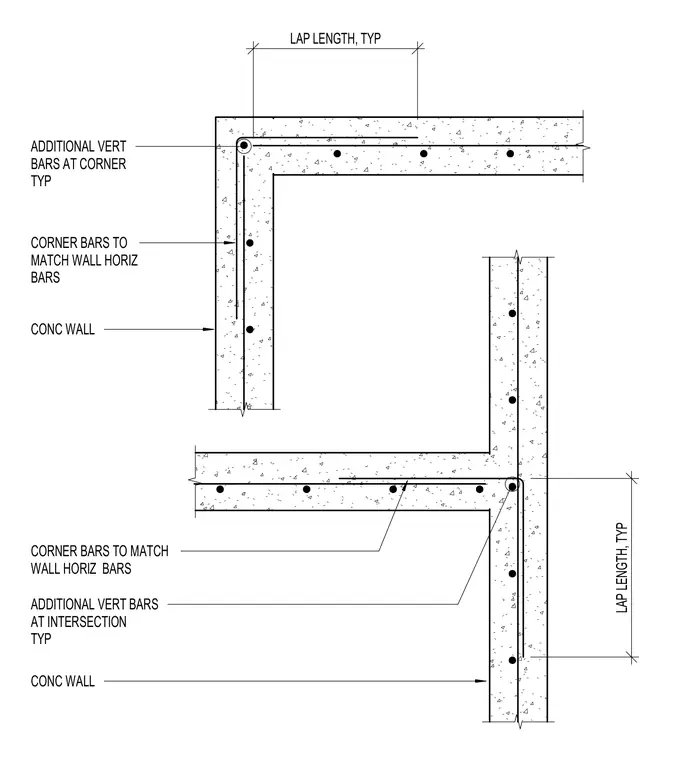

Concrete walls feature horizontal reinforcing bars meeting at a corner and intersecting wall junction, supplemented by additional vertical reinforcing bars and standard lap lengths matching the wall horizontal bars.
ADDITIONAL VERT BARS AT CORNER TYP CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL ADDITIONAL VERT BARS AT INTERSECTION TYP LAP LENGTH, TYP LAP LENGTH, TYP
