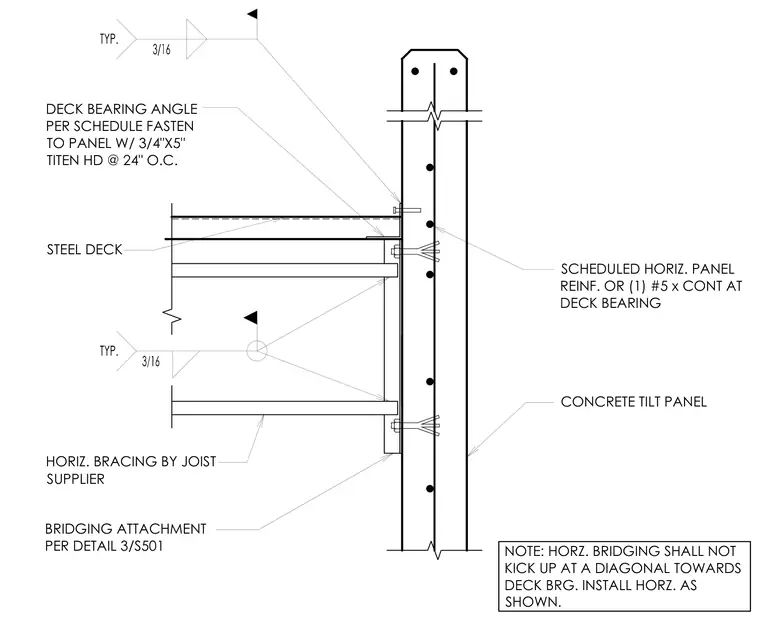

A steel deck bears on a deck bearing angle secured to a concrete tilt-up panel with three-quarter-inch by five-inch Titen HD anchors at twenty-four inches on center. The concrete panel features scheduled horizontal panel reinforcement or one continuous number five bar at the deck bearing location. Horizontal bracing and bridging attachments are provided per detail three on sheet S501 and by the joist supplier, with horizontal bridging installed horizontally rather than angled toward the deck bearing.
BRIDGING ATTACHMENT PER DETAIL 3/S501 HORIZ. BRACING BY JOIST SUPPLIER NOTE: HORZ. BRIDGING SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG. INSTALL HORZ. AS SHOWN. DECK BEARING ANGLE PER SCHEDULE FASTEN TO PANEL W/ 3/4"X5" TITEN HD @ 24" O.C. STEEL DECK SCHEDULED HORIZ. PANEL REINF. OR (1) #5 x CONT AT DECK BEARING CONCRETE TILT PANEL
