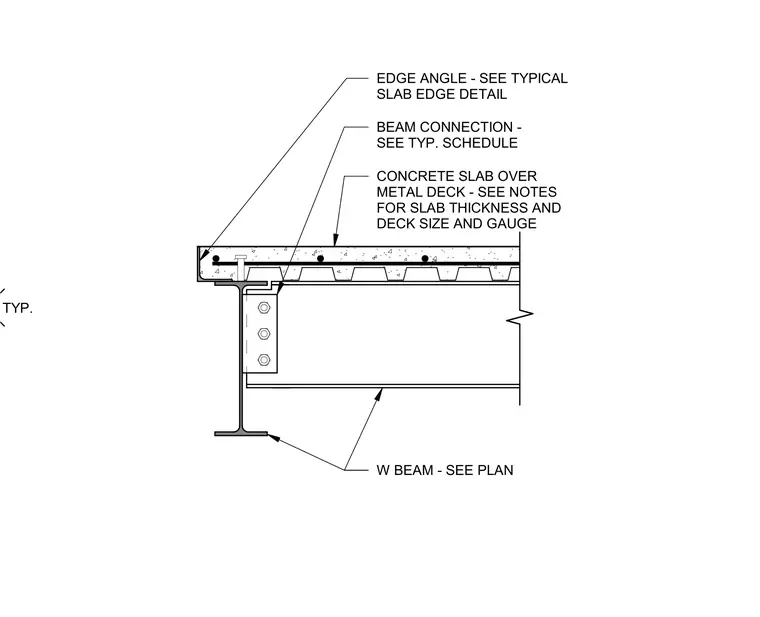

This assembly consists of a concrete slab poured over metal decking, which is supported by a wide-flange beam. The beam connection is specified per the typical schedule, while the slab thickness, deck size, and gauge are determined by the structural notes. An edge angle is provided at the perimeter of the slab, with its specific configuration referenced to the typical slab edge detail. The wide-flange beam size is determined per the structural plan.
