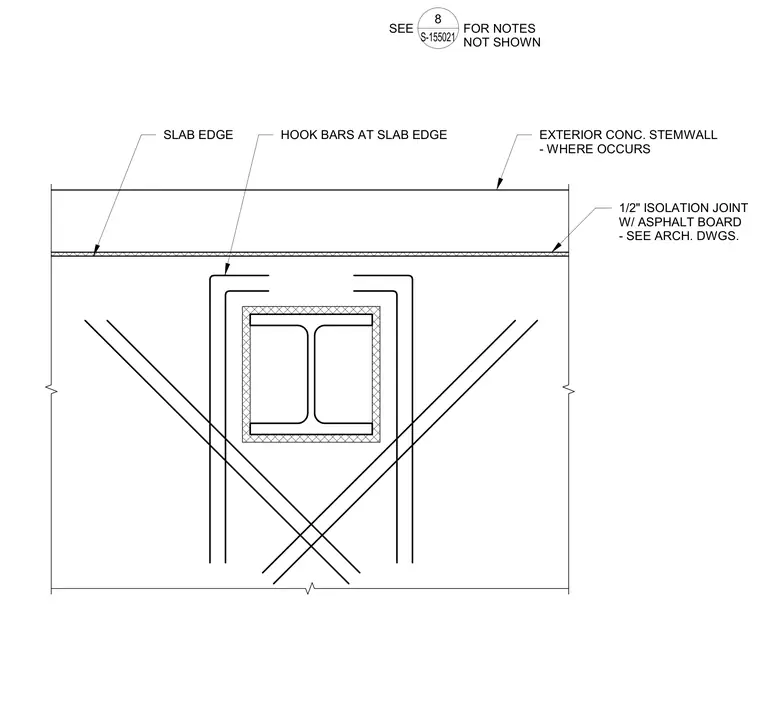

The slab on grade features hooked reinforcing bars positioned around the column and at the slab edge. An exterior concrete stemwall occurs at the perimeter adjacent to a half-inch isolation joint filled with asphalt board, coordinated with architectural drawings. Additional reinforcing notes are referenced on sheet S-155021.
SLAB EDGE 1/2" ISOLATION JOINT W/ ASPHALT BOARD - SEE ARCH. DWGS. EXTERIOR CONC. STEMWALL - WHERE OCCURS HOOK BARS AT SLAB EDGE SEE FOR NOTES NOT SHOWN 8 S-155021
