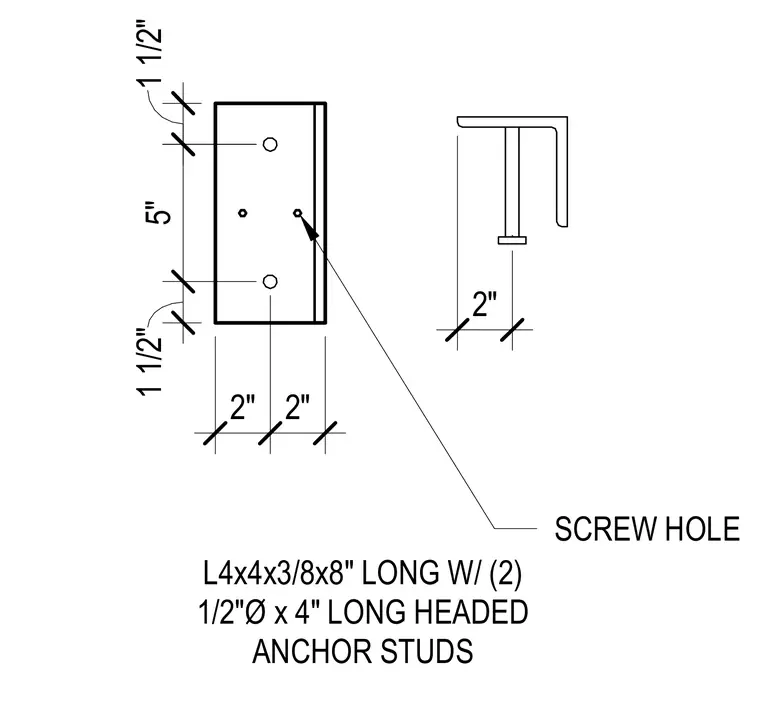

An L4x4x3/8 steel angle cut 8 inches long features two 1/2-inch diameter by 4-inch long headed anchor studs welded to the back face. The vertical leg of the angle includes a 2-inch edge distance and spaced screw holes for secondary attachment. Dimensions detail a 5-inch spacing between the anchor studs with a 1-1/2-inch end distance.
1 1/2" 2" 2" 5" 1 1/2" L4x4x3/8x8" LONG W/ (2) 1/2"Ø x 4" LONG HEADED ANCHOR STUDS 2" SCREW HOLE
