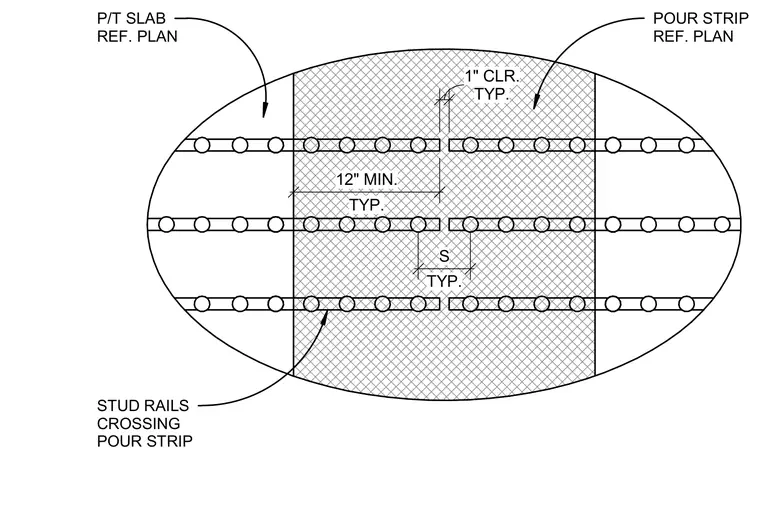

Stud rails cross a pour strip within a post-tensioned concrete slab. The assembly requires a typical one-inch clearance and a twelve-inch minimum typical spacing dimension across the pour strip. Stud rails continue through the joint region as referenced on the structural plans.
TYP. 1" CLR. TYP. 12" MIN. TYP. S STUD RAILS CROSSING POUR STRIP POUR STRIP REF. PLAN P/T SLAB REF. PLAN
