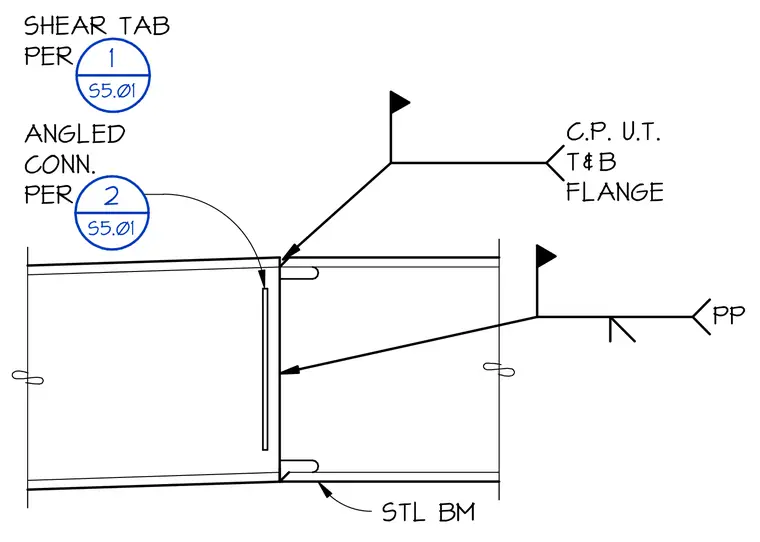

A steel beam connects to a supporting member via a shear plate designated per structural sheet S5.01. An angled connection per sheet S5.01 ties into the top and bottom flange with field weld symbols indicated. The connection utilizes a single plate setup with specific cope and unsymmetrical flange cuts at the beam end.
STL BM C.P. U.T. T&B FLANGE PP SHEAR TAB PER 1 S5.01 ANGLED CONN. PER 2 S5.01
