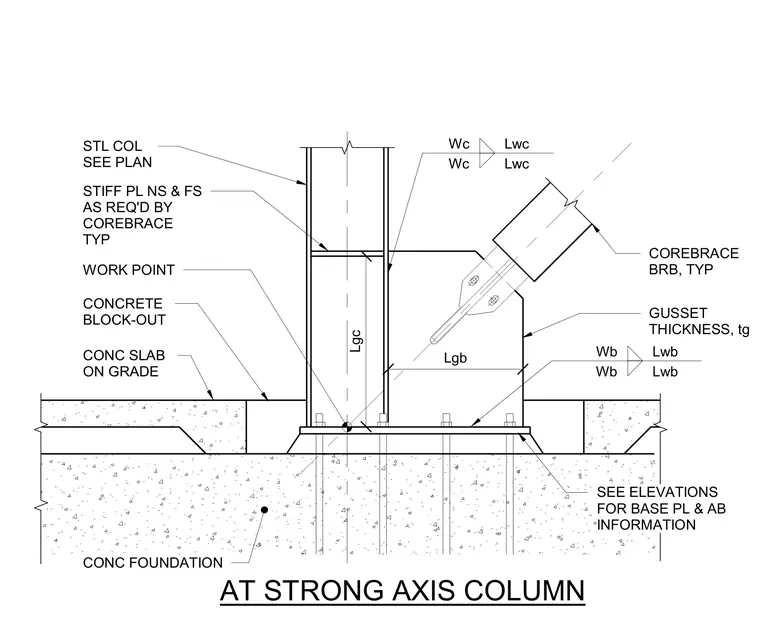

A buckling-restrained brace connects to a gusset plate welded against a steel column and base plate anchored into a concrete foundation. Stiffener plates are provided near side and far side as required by the brace manufacturer. A concrete block-out is formed in the concrete slab on grade surrounding the column base and gusset plate assembly. Base plate and anchor bolt information is referenced separately on elevations for the strong axis column connection.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL NS & FS AS REQ'D BY COREBRACE TYP CONC FOUNDATION WORK POINT Wc Lwc Wc Lwc COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION AT STRONG AXIS COLUMN Lgc Lgb
