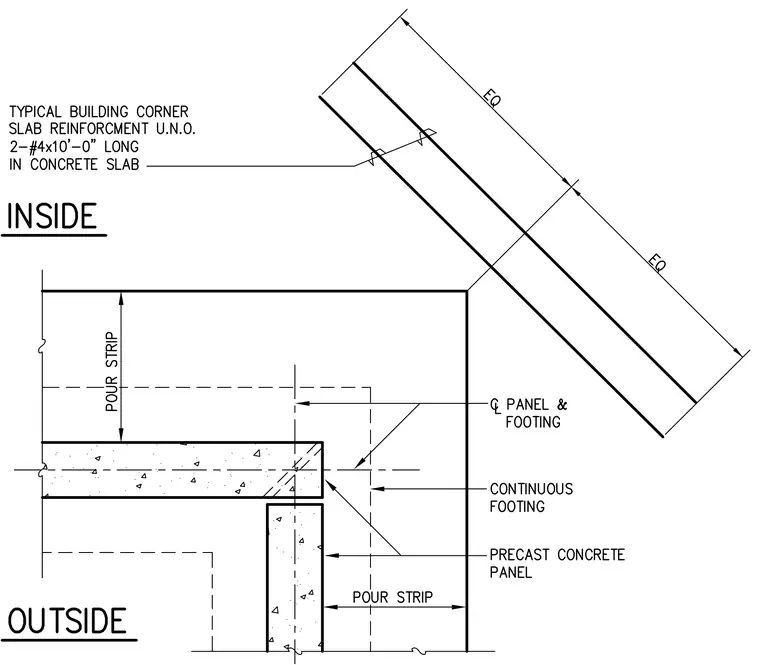

Typical building corner concrete slab reinforcement features two number four rebar bars ten feet zero inches long placed in the concrete slab unless noted otherwise. A continuous footing supports the precast concrete panels with designated pour strips at the interior corner junction.
