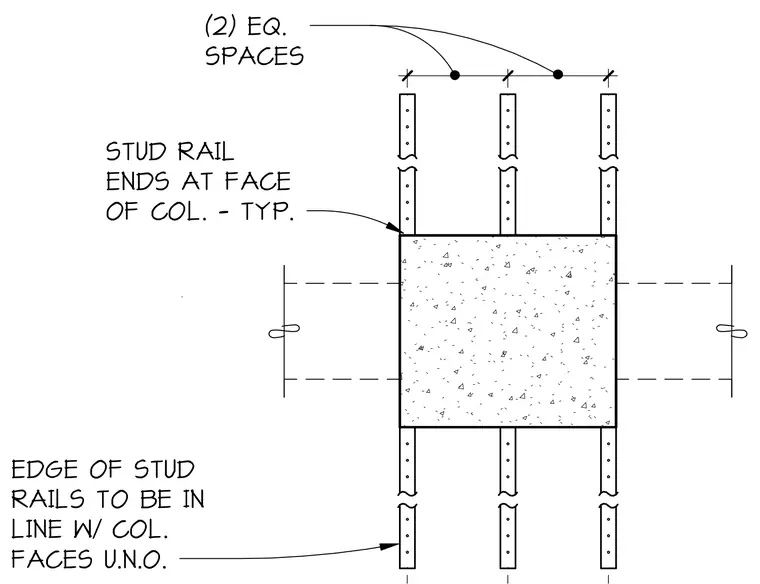

Stud rails terminate at the face of the column typically, with the edge of the stud rails aligned with the column faces unless noted otherwise. Two equal spaces are dimensioned across the stud rail layout. The layout provides shear reinforcement around the column support in a concrete slab system.
STUD RAIL ENDS AT FACE OF COL. - TYP. EDGE OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O. (2) EQ. SPACES 8 3/ 8 " 8 3/ 8 "
