Structural · S-W65R3

Braced Frame Gusset Plate Connection with Concrete Fill

Materials

Concrete Steel

Elements

Beams Bracing Connections / Plates Reinforcing

Connections

Gusset Plate Welded Connection

About this detail

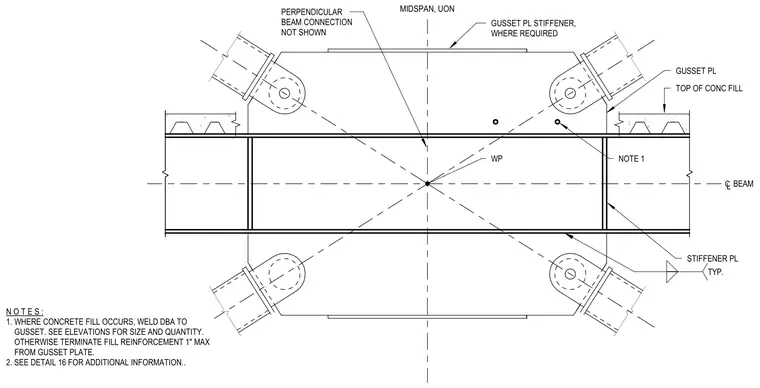

A structural steel beam connection features four intersecting diagonal braces framing into gusset plates. Where concrete fill is present, deformed bar anchors are welded to the gusset plate per elevations; otherwise, fill reinforcement terminates one inch maximum from the gusset plate. Gusset plate stiffeners are provided where required, and perpendicular beam connections are noted. Stiffener plates are welded to the beam web typically, with work points established at the intersection of brace centerlines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
