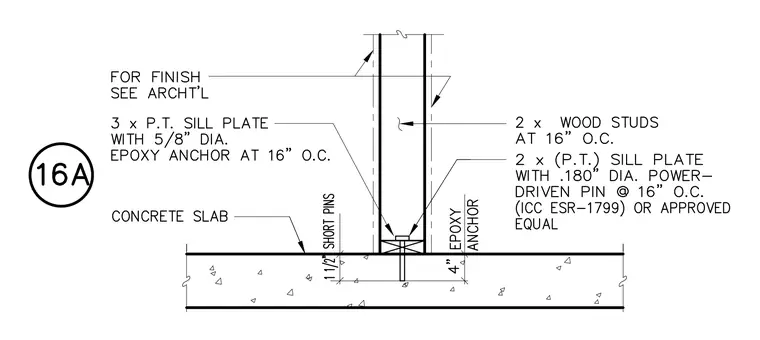

A wood stud partition wall bears on a three-inch pressure-treated sill plate anchored to a concrete slab with five-eighths-inch diameter epoxy anchors at sixteen inches on center. The two-by wood studs are spaced at sixteen inches on center. A two-by pressure-treated sill plate is fastened with point-one-eight-zero-inch diameter power-driven pins at sixteen inches on center per ICC ESR-one-seven-nine-nine or approved equal. Finishes are per architectural drawings.
