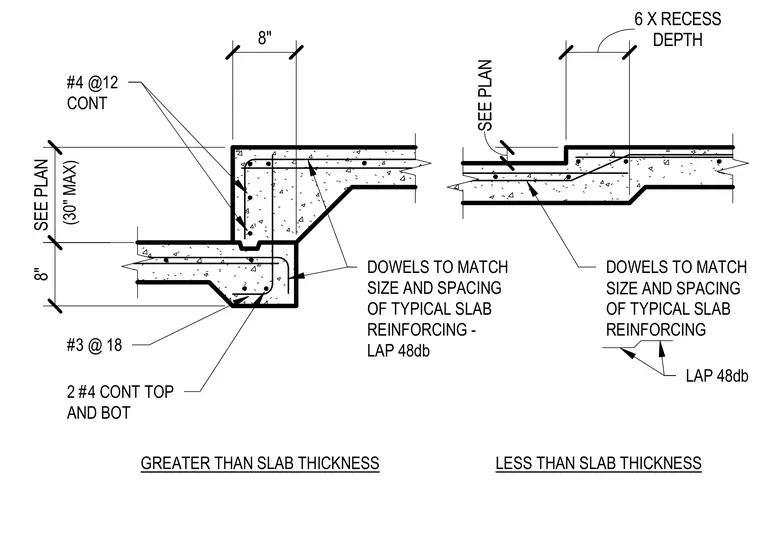

The slab-on-grade recess detail shows two conditions for dropping or stepping the concrete slab: one with a total depth greater than the slab thickness and one with a depth less than the slab thickness. For the greater depth condition, a thickened concrete edge extends downward with two continuous number four reinforcing bars top and bottom, alongside number three dowels spaced at eighteen inches matching the typical slab reinforcing with a forty-eight bar diameter lap. Dowels extend horizontally into the adjacent slab matching the size and spacing of typical slab reinforcing with a forty-eight bar diameter lap. The recess width and depth are sized per plan up to a thirty-inch maximum.
GREATER THAN SLAB THICKNESS LESS THAN SLAB THICKNESS #3 @ 18 DOWELS TO MATCH SIZE AND SPACING OF TYPICAL SLAB REINFORCING - LAP 48db SEE PLAN 8" 8" DEPTH 6 X RECESS SEE PLAN (30" MAX) 2 #4 CONT TOP AND BOT #4 @12 CONT DOWELS TO MATCH SIZE AND SPACING OF TYPICAL SLAB REINFORCING LAP 48db
