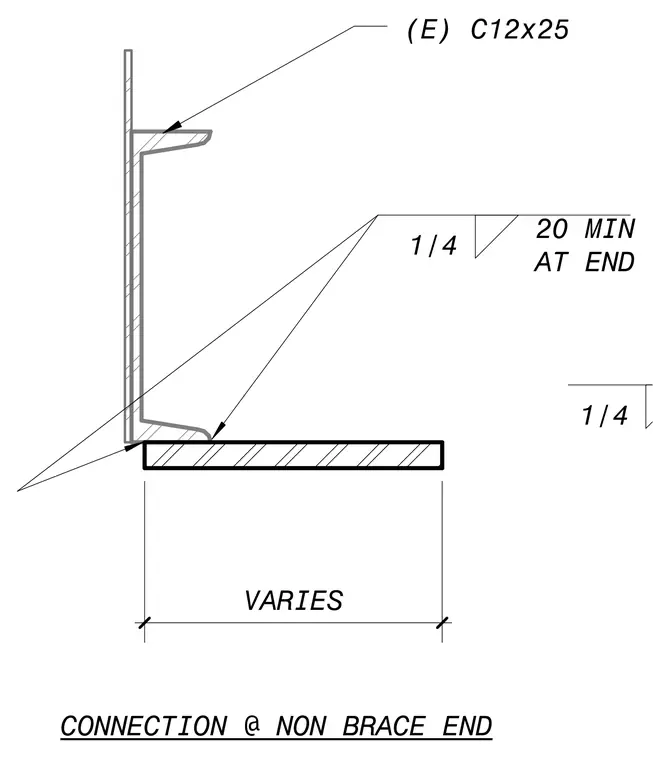

An existing C12x25 structural steel channel connects to a variable width steel plate at a non-brace end. A one-quarter inch fillet weld secures the channel web and flanges to the plate with a minimum twenty inch length at the end.
