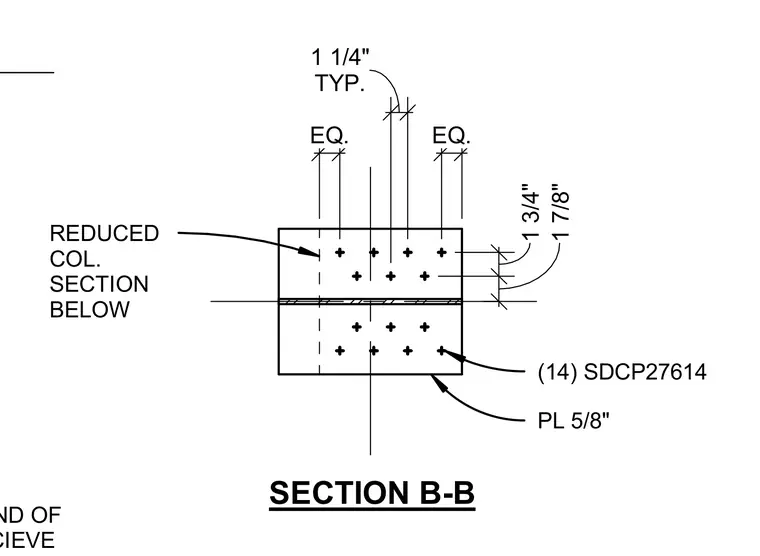

A five-eighths inch plate connects a structural steel beam to a reduced column section below. Fourteen fasteners secure the assembly with specified edge distances and equal spacing dimensions of one and one-quarter inches. The beam end is recessed to receive the connecting member.
SECTION B-B PL 5/8" REDUCED COL. SECTION BELOW (14) SDCP27614 1 3/4" 1 7/8" TYP. 1 1/4" EQ. EQ. RECESS IN END OF BEAM TO RECIEVE
