Concrete shear wall reinforcement at wall thickness changes and wall openings utilizes vertical dowels matching the size and spacing of the reinforcement above, extending down to the level below the slab with hooks at the top of the wall and a number four tie matching the vertical face spacing for offsets greater than six inches. For offsets less than or equal to six inches, dowels similarly match the reinforcement above with hooks at the top of the wall. Wall opening transitions incorporate vertical reinforcement per shear wall elevations, U-bars matching adjacent vertical bar sizes and spacings, and coupling beam extents reinforced per coupling beam details.

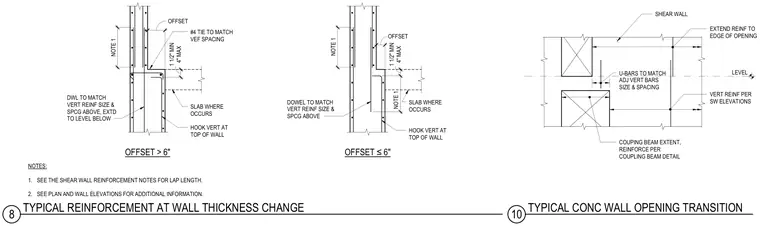

#4 TIE TO MATCH VEF SPACING SLAB WHERE OCCURS HOOK VERT AT TOP OF WALL DWL TO MATCH VERT REINF SIZE & SPCG ABOVE, EXTD TO LEVEL BELOW SLAB WHERE OCCURS HOOK VERT AT TOP OF WALL DOWEL TO MATCH VERT REINF SIZE & SPCG ABOVE NOTE 1 OFFSET NOTE 1 NOTE 1 OFFSET 1 1/2" MIN 4" MAX 1 1/2" MIN 4" MAX OFFSET > 6" OFFSET ≤6" NOTES: 1. SEE THE SHEAR WALL REINFORCEMENT NOTES FOR LAP LENGTH. 2. SEE PLAN AND WALL ELEVATIONS FOR ADDITIONAL INFORMATION. 27 1/2" 27 1/2" 6" 4 3/8" 24 5/8" 5 3/8" 12" SHEAR WALL LEVEL EXTEND REINF TO EDGE OF OPENING VERT REINF PER SW ELEVATIONS U-BARS TO MATCH ADJ VERT BARS SIZE & SPACING COUPING BEAM EXTENT, REINFORCE PER COUPLING BEAM DETAIL 8 TYPICAL REINFORCEMENT AT WALL THICKNESS CHANGE 10 TYPICAL CONC WALL OPENING TRANSITION
