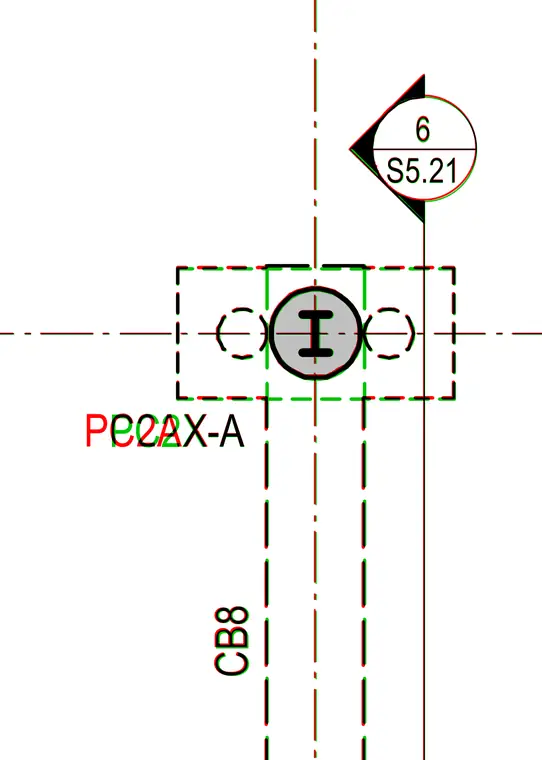

This structural plan detail shows a steel column profile centered on a base plate with anchor bolt locations indicated by dashed lines. Centerlines intersect at the column axis, referencing drawing detail 6 on sheet S5.21. The designation CB8 identifies the structural element.
