Structural · S-W5CTG

Steel Beam Bearing on Steel Column

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks Connections / Plates

Connections

Base Plate / Anchorage

About this detail

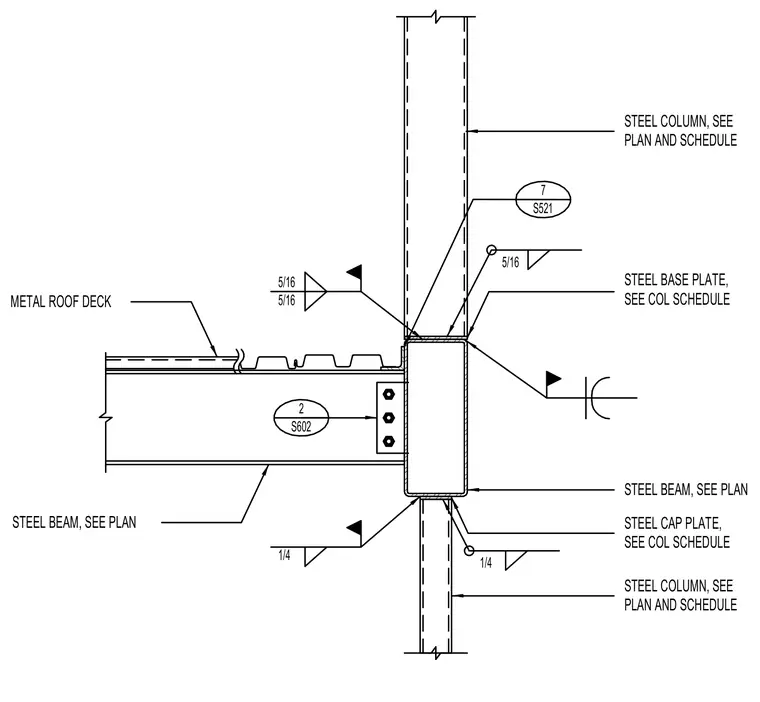

A steel beam frames into a structural steel column, sized per plan and schedule, supported by a steel base plate or cap plate welded with five-sixteenth-inch and one-quarter-inch fillet welds. A metal roof deck bears above the steel beam connection. The beam web connects to the column face using bolted shear tabs or similar framing elements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
