Structural · S-W5CQV

Typical Minimum Concrete Wall Footing

Materials

Concrete

Elements

Walls Floors / Slabs Foundations / Footings Reinforcing

Connections

Rebar Splice / Development

About this detail

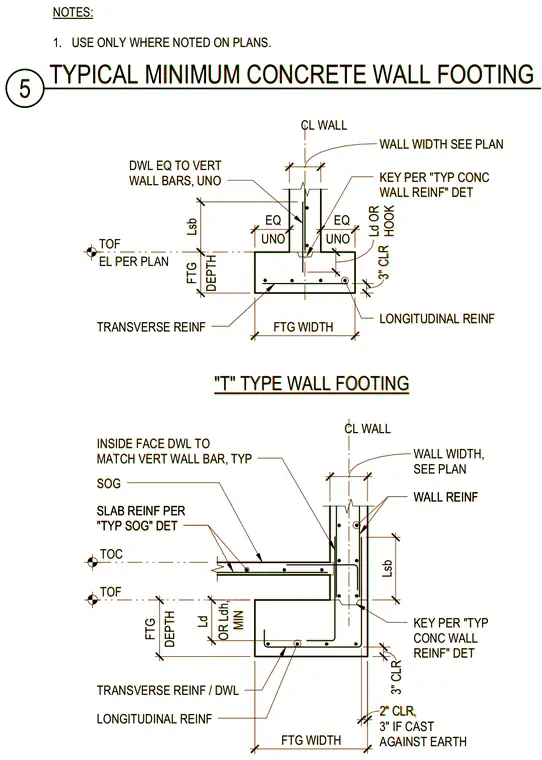

Standard minimum concrete wall footings comprise a symmetric wall footing and an asymmetric "T" type wall footing adjoining a slab-on-grade. The foundation wall centers over the footing with vertical wall dowels matching the vertical wall reinforcing bars unless noted otherwise. Transverse and longitudinal reinforcement run through the footing with specified development lengths, hook requirements, and lap splice lengths. A construction key is provided at the top of the footing interface. Protective concrete clear cover is specified at three inches for earth contact and two inches elsewhere.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
