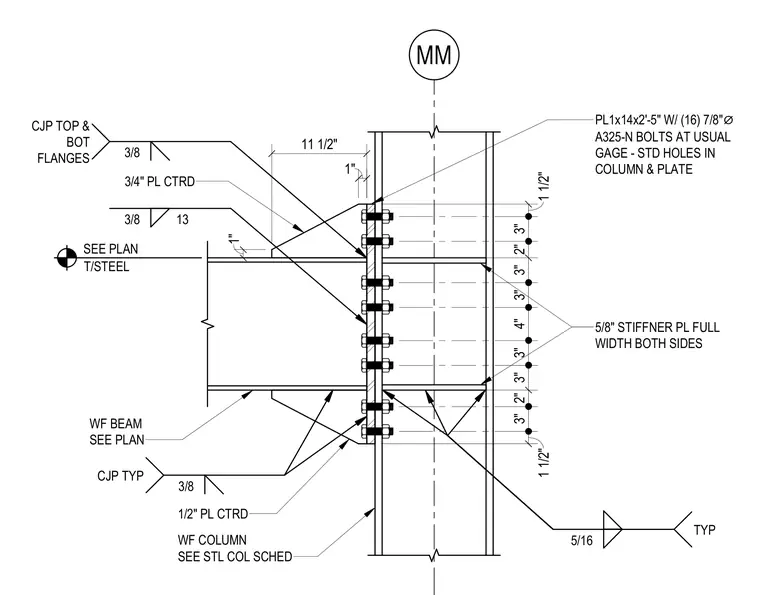

A wide-flange beam connects to a wide-flange column using a bolted end plate and complete joint penetration welds at the top and bottom flanges. The assembly incorporates a 1-inch thick by 14-inch wide by 2-foot 5-inch plate secured with sixteen 7/8-inch diameter A325-N bolts in standard holes at usual gauge spacing. Five-eighths inch thick full-width stiffener plates are welded to both sides of the column web with 5/16-inch typical fillet welds. Three-eighths inch complete joint penetration welds tie the flanges and plates together, supplemented by centered plates of 3/4-inch and 1/2-inch thickness.
1 1/2" 3" 2" 3" 3" 4" 3" 3" 2" 3" 1 1/2" MM 3/4" PL CTRD 3/8 CJP TOP & BOT FLANGES WF BEAM SEE PLAN 1/2" PL CTRD 3/8 CJP TYP PL1x14x2'-5" W/ (16) 7/8" ⌀ A325-N BOLTS AT USUAL GAGE - STD HOLES IN COLUMN & PLATE 5/8" STIFFNER PL FULL WIDTH BOTH SIDES 3/8 13 5/16 TYP WF COLUMN SEE STL COL SCHED T/STEEL SEE PLAN 11 1/2" 1" 1"
