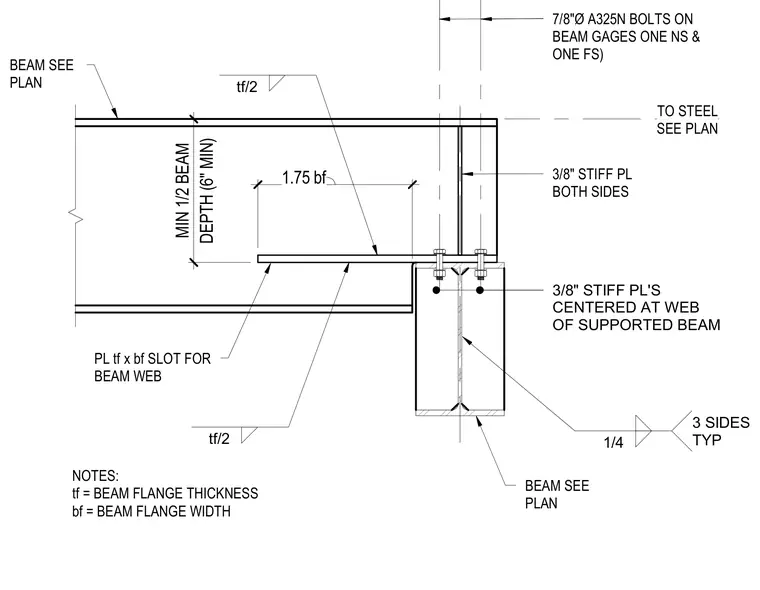

A supported steel beam frames into a supporting steel beam via a seated connection. A plate with a slot for the beam web is welded to the support, proportioned with a minimum one-half beam depth and six-inch minimum dimension, set at a distance of 1.75 times the beam flange width from the support face. Three-eighths-inch stiffener plates are provided on both sides and centered at the web of the supported beam. Seven-eighths-inch diameter A325-N bolts are installed on beam gauges, with one near-side and one far-side bolt. Fillet welds of one-quarter-inch size are applied on three sides typically.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN BEAM SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
