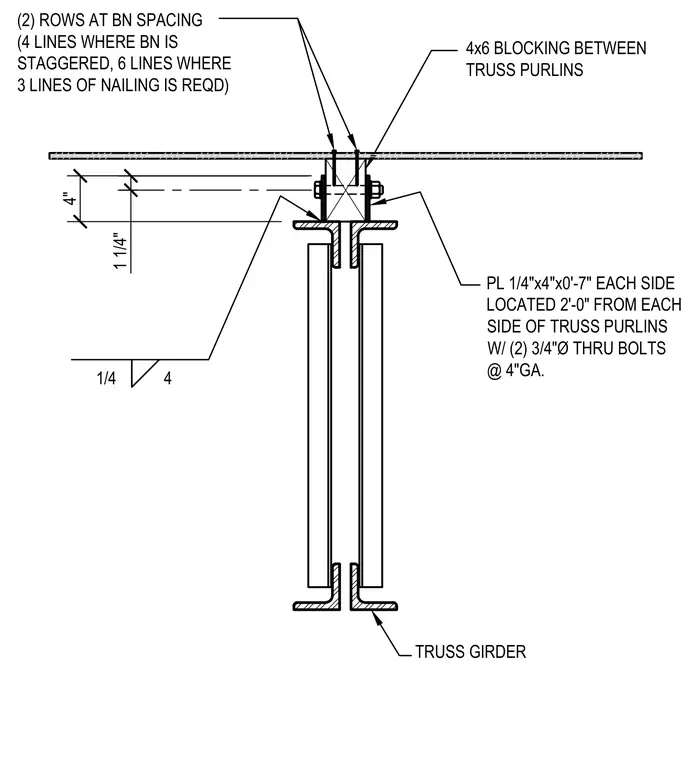

A 4x6 wood blocking is fitted between truss purlins atop a truss girder. Steel plates measuring 1/4 inch by 4 inches by 7 inches are placed on each side of the blocking, located 2 feet from each side of the truss purlins. Two 3/4-inch diameter through bolts secure the plates with a 4-inch gauge. Two rows of nailing are applied at the specified spacing, with four lines used when staggered and six lines where three lines of nailing are required. A 1/4-inch fillet weld with a 4-inch pitch connects the assembly.
TRUSS GIRDER 4x6 BLOCKING BETWEEN TRUSS PURLINS PL 1/4"x4"x0'-7" EACH SIDE LOCATED 2'-0" FROM EACH SIDE OF TRUSS PURLINS W/ (2) 3/4"Ø THRU BOLTS @ 4"GA. 4" 1 1/4" 1/4 4 (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
