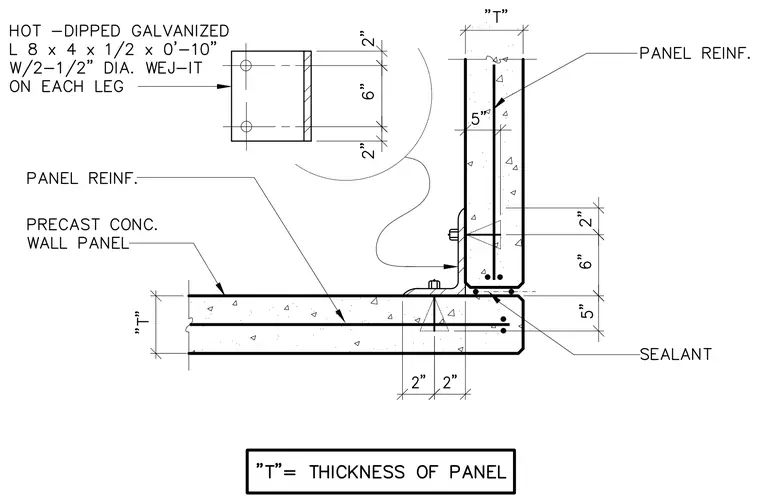

Two precast concrete wall panels meet at a ninety-degree corner with a sealant joint at the exterior intersection. The connection is secured with a hot-dipped galvanized L 8x4x1/2 angle, measuring zero feet ten inches in length. The angle is anchored to each panel using two one-half-inch diameter Wej-It expansion anchors. Each panel contains internal panel reinforcement and has a thickness designated as T.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
