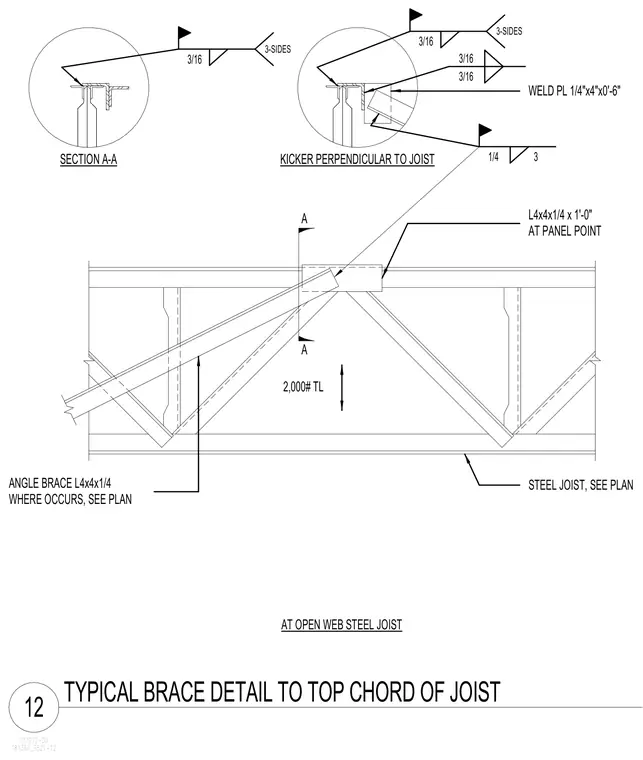

An angle brace connects to the top chord of an open web steel joist at a panel point using a 1-foot long L4x4x1/4 angle and an L4x4x1/4 angle brace where required by plan. A 1/4-inch by 4-inch by 6-inch steel plate is welded to the joist top chord with three-sided 3/16-inch fillet welds. A kicker perpendicular to the joist is welded with a 1/4-inch fillet weld. The assembly is designed to handle a 2,000-pound tension or compression load as indicated on the structural plans.
137272-00 181360_S521-12 12 TYPICAL BRACE DETAIL TO TOP CHORD OF JOIST A A L4x4x1/4 x 1'-0" AT PANEL POINT STEEL JOIST, SEE PLAN ANGLE BRACE L4x4x1/4 WHERE OCCURS, SEE PLAN 3/16 SECTION A-A 3/16 3/16 WELD PL 1/4"x4"x0'-6" KICKER PERPENDICULAR TO JOIST 3/16 3 1/4 3-SIDES 3-SIDES AT OPEN WEB STEEL JOIST 2,000# TL
