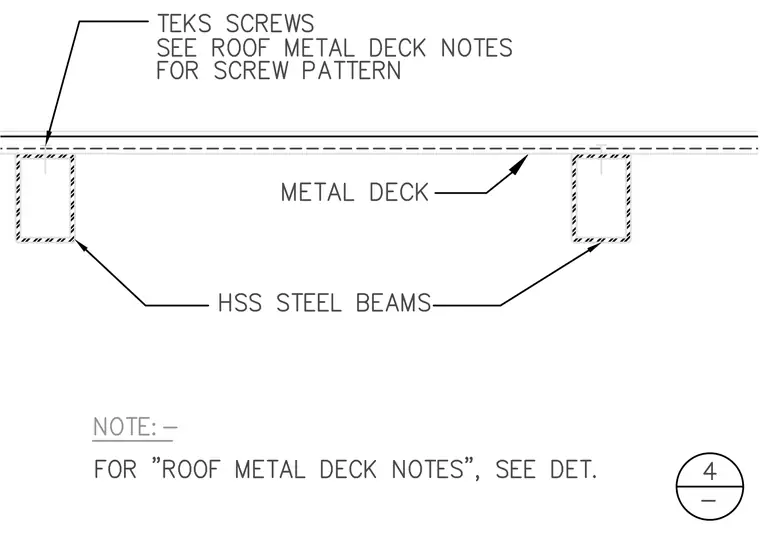

Metal deck bears directly across hollow structural section steel beams and is fastened with self-drilling Teks screws following the specified roof metal deck screw pattern.
