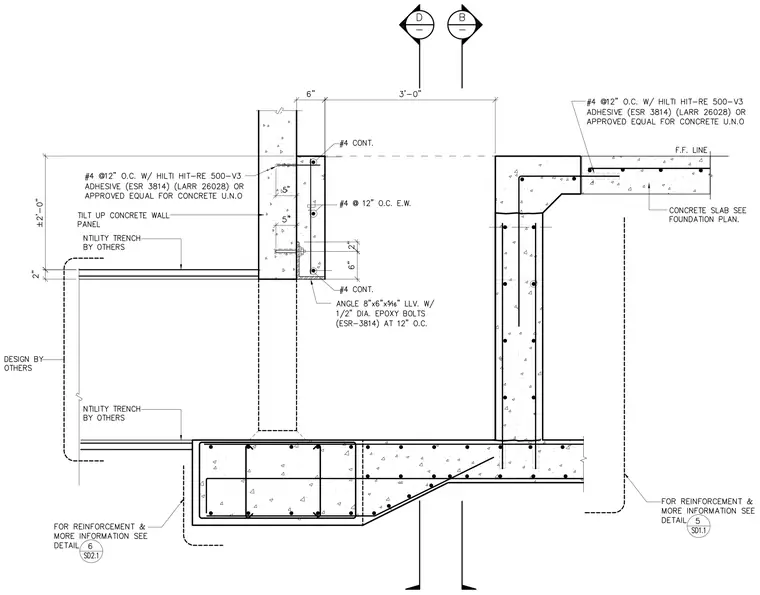

A tilt-up concrete wall panel bears upon a continuous concrete foundation and connects to an interior concrete slab. The wall panel is secured with an angle 8x6x5/16 long leg vertical with 1/2 diameter epoxy bolts at 12 inches on center and reinforced with number 4 bars at 12 inches on center each way. Continuous number 4 reinforcing bars are detailed at the top and bottom of the embedded connection zone. The adjacent concrete slab features number 4 bars at 12 inches on center with Hilti HIT-RE 500-V3 adhesive. Utility trenches are provided by others as indicated on the drawing.
