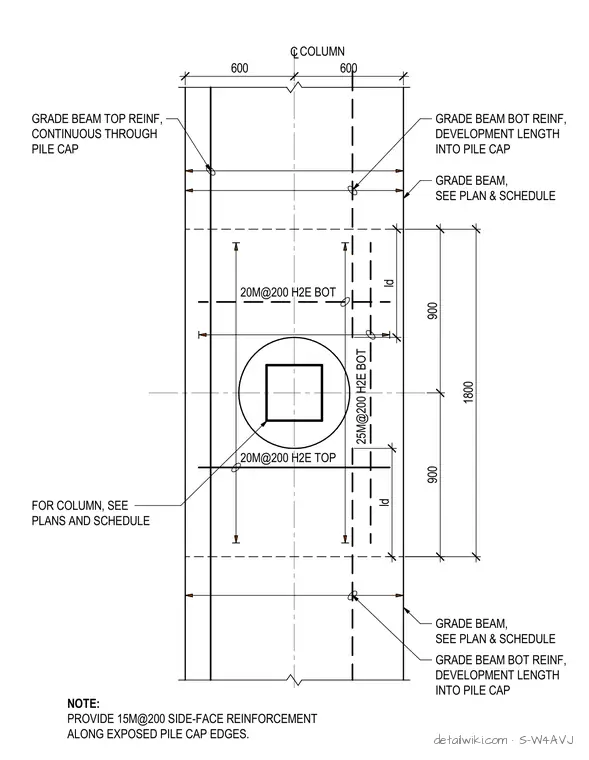

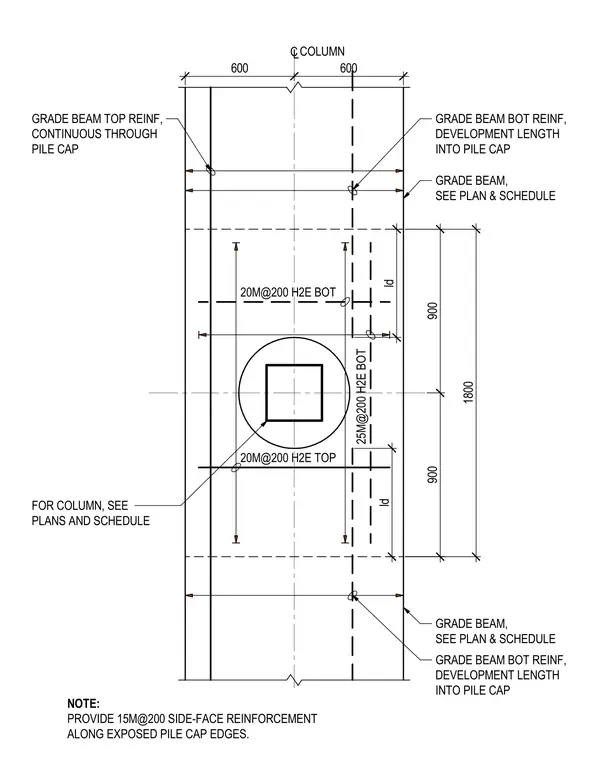

Reinforcing steel layout at a grade beam and concrete pile cap intersection. The grade beam top reinforcement runs continuously through the pile cap, while the bottom reinforcement extends with required development lengths into the pile cap. Additional column and grade beam sizes are coordinated per the structural plans and schedules. Horizontal reinforcement layers use twenty-five-millimeter bars at two-hundred-millimeter spacing and twenty-millimeter bars at two-hundred-millimeter spacing. Side-face reinforcement of fifteen-millimeter bars at two-hundred-millimeter spacing is specified along exposed pile cap edges.
