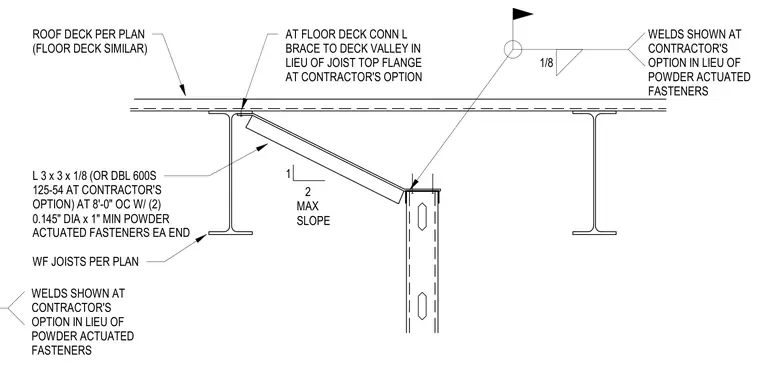

An angle brace consisting of an L 3x3x1/8 or double 600S 125-54 at contractor option is spaced at 8 feet on center and secured with two 0.145-inch diameter by 1-inch minimum powder-actuated fasteners at each end. Alternatively, welds are permitted at the contractor option in lieu of powder-actuated fasteners. The brace connects to the deck valley in lieu of the joist top flange, accommodating a maximum slope of 1 to 2. Roof deck is provided per plan with floor deck similar, connecting to wide flange joists.
1 2 L 3 x 3 x 1/8 (OR DBL 600S 125-54 AT CONTRACTOR'S OPTION) AT 8'-0" OC W/ (2) 0.145" DIA x 1" MIN POWDER ACTUATED FASTENERS EA END WELDS SHOWN AT CONTRACTOR'S OPTION IN LIEU OF POWDER ACTUATED FASTENERS MAX SLOPE WF JOISTS PER PLAN AT FLOOR DECK CONN L BRACE TO DECK VALLEY IN LIEU OF JOIST TOP FLANGE AT CONTRACTOR'S OPTION ROOF DECK PER PLAN (FLOOR DECK SIMILAR) WELDS SHOWN AT CONTRACTOR'S OPTION IN LIEU OF POWDER ACTUATED FASTENERS 1/8
