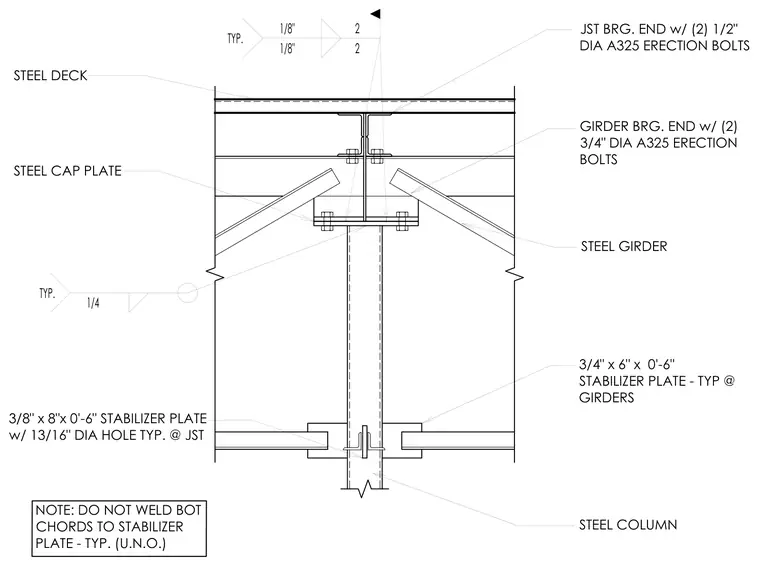

An open web steel joist bears on a steel girder supported by a steel column with a cap plate. The girder bearing end secures to the steel cap plate using two three-quarter-inch diameter A325 erection bolts. The joist bearing end fastens to the top flange of the girder using two half-inch diameter A325 erection bolts. Three-eighths-inch by eight-inch by zero-foot-six-inch stabilizer plates with thirteen-sixteenths-inch diameter holes anchor the joist chords, while three-quarter-inch by six-inch by zero-foot-six-inch stabilizer plates brace the girder. Bottom chords are left unwelded to the stabilizer plate unless otherwise noted.
GIRDER BRG. END w/ (2) 3/4" DIA A325 ERECTION BOLTS 3/4" x 6" x 0'-6" STABILIZER PLATE - TYP @ GIRDERS STEEL GIRDER JST BRG. END w/ (2) 1/2" DIA A325 ERECTION BOLTS STEEL COLUMN NOTE: DO NOT WELD BOT CHORDS TO STABILIZER PLATE - TYP. (U.N.O.) TYP. 1/4 3/8" x 8"x 0'-6" STABILIZER PLATE w/ 13/16" DIA HOLE TYP. @ JST STEEL CAP PLATE TYP. 1/8" 1/8" 2 2 STEEL DECK
