Structural · S-W43D9

Beam Connection with Gusset Plate and Channel Section

Elements

About this detail

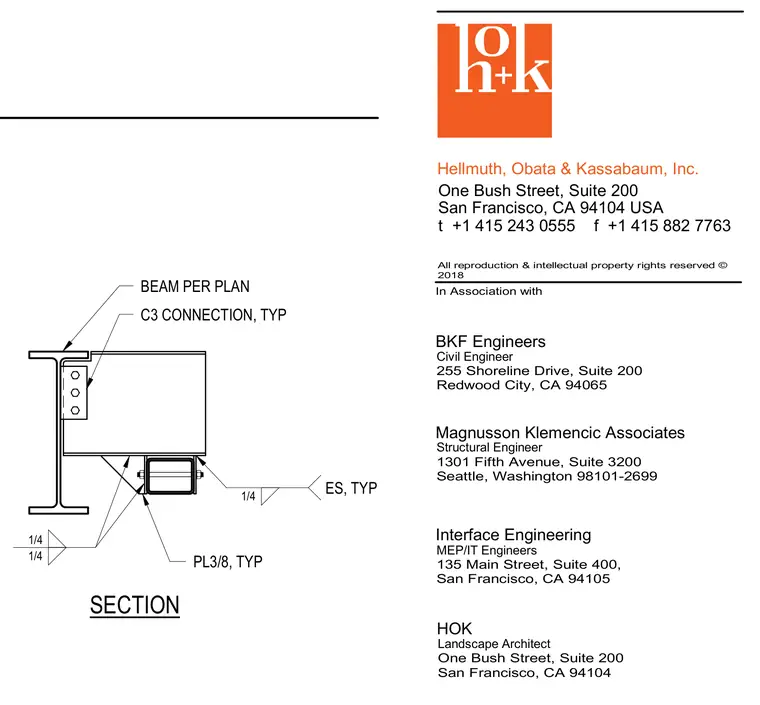

A beam per plan connects to a supporting member using a C3 connection detail with three bolts. A three-eighths-inch thick typical plate and a channel section are welded to the underside of the structural beam using quarter-inch fillet welds each side. The assembly is detailed with specific weld symbols and plate sizing typical for structural steel framing.
