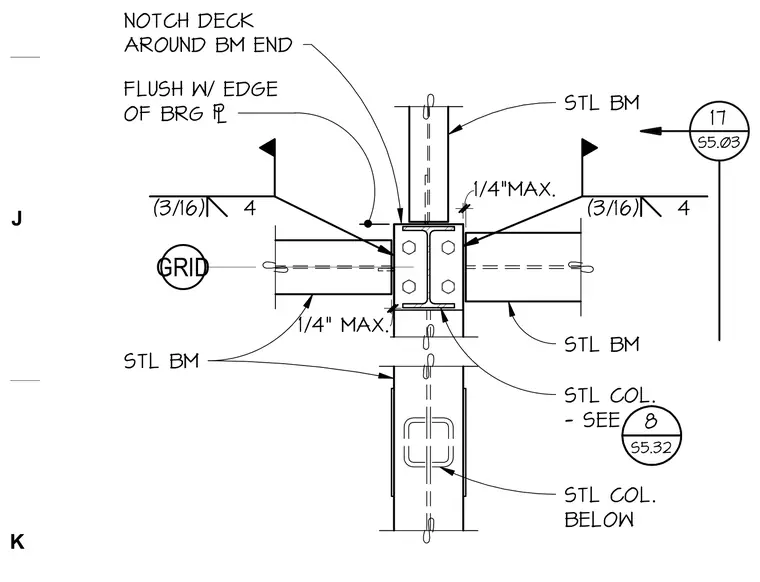

Steel beams frame into a steel column with their ends aligned flush with the edge of the bearing plate. The metal deck is notched around the steel beam end to accommodate the connection. Three-sixteenth-inch fillet welds secure the framing members with specified clearances up to one-quarter inch maximum. Grid lines and references to other structural details coordinate the assembly.
GRID 1/4" MAX. 1/4"MAX. (3/16) 4 (3/16) 4 STL BM STL COL. - SEE STL COL. BELOW NOTCH DECK AROUND BM END FLUSH W/ EDGE OF BRG ( 8 S5.32 STL BM STL BM 17 S5.03 J K
