Structural · S-W3P77

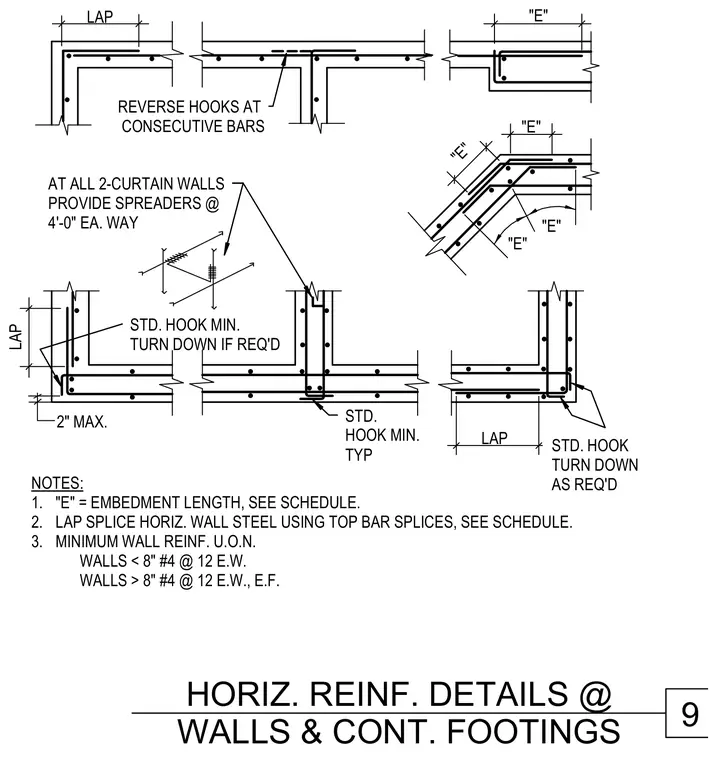

Horizontal Reinforcing Details at Walls and Continuous Footings

Materials

Steel

Elements

Walls Curtain Walls Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

Concrete walls and continuous footings feature horizontal reinforcing steel configured with lap splices, standard hooks, and embedment lengths per schedule. Two-curtain walls include spreaders at four feet each way with reverse hooks at consecutive bars. Minimum wall reinforcement is specified as number four bars at twelve inches each way for walls under eight inches, and number four bars at twelve inches each way, each face, for walls over eight inches. Standard hooks turn down as required at corners, intersections, and ends, maintaining a maximum two inch lap distance.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
