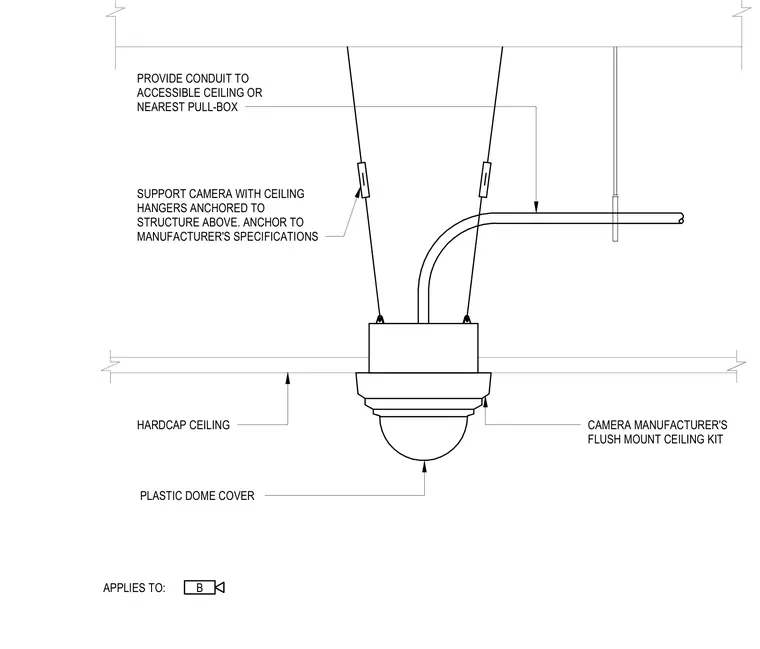

The security camera assembly is supported by ceiling hangers anchored directly to the structure above according to the manufacturer's specifications. A conduit connects the camera housing to an accessible ceiling or the nearest pull-box. The camera unit is integrated into a hardcap ceiling using the manufacturer's flush mount ceiling kit and features a plastic dome cover.
PROVIDE CONDUIT TO ACCESSIBLE CEILING OR NEAREST PULL-BOX HARDCAP CEILING SUPPORT CAMERA WITH CEILING HANGERS ANCHORED TO STRUCTURE ABOVE. ANCHOR TO MANUFACTURER'S SPECIFICATIONS PLASTIC DOME COVER CAMERA MANUFACTURER'S FLUSH MOUNT CEILING KIT APPLIES TO: B
